Precision

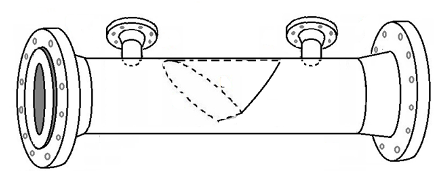

WEDGE FLOW METER
The SFC Wedge Flow Meter is engineered for high-viscosity, sediment-laden, and abrasive fluids, featuring an open-wedge design for reliable performance.
Mining slurries
Petroleum processing
Power generation
Applications
Codes and Standard
ISO 5167.2-2003
ASME MFC 3M
DIN 1952, BS 1042.
EN 10204.3.1
Key Advantages
Accuracy: ±0.25% (calibrated) vs. ±1% for orifice
Head loss: ≤20% DP vs. 50%-80% for orifice
Wide size range: 0.5" to 180"
Models & Technical Specifications:
| Model | Distinction | Sizes | Pressure Ratings | Accuracy | Rangeability | Temperature Range | End Connections | Use Case |
|---|---|---|---|---|---|---|---|---|
| SFC-WM | General-purpose design | 1.5" to 48" | 150# to 2500# | ±0.5%; ±0.25% calib. | 5:1 to 100:1 | -180°C to 800°C | Flanged, butt-weld | Standard flow |
