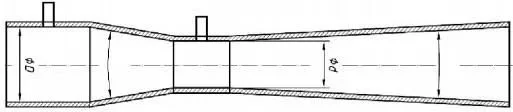

VENTURI FLOW METER

The SFC Venturi Flow Meter offers a proven hydraulic design for low head loss and high accuracy, ideal for liquids, gases, and steam in full-pipe conditions.

Power generation
Oil and gas processing
Industrial flow control

Applications

Codes and Standard

ISO 5167.2-2003
ASME MFC 3M
DIN 1952, BS 1042.
EN 10204.3.1

Key Advantages

Accuracy: ±0.25% (calibrated) vs. ±1% for orifice.

Head loss: ≤20% DP vs. 50%-80% for orifice.
Wide size range: 0.5" to 180".

Models & Technical Specifications:




    Model
    Distinction
    Sizes
    Pressure Ratings
    Accuracy
    Rangeability
    Temperature Range
    End Connections
    Use Case


    SFC-ASME
    General-purpose design
    2" to 144"
    150# to 2500#
    ±1.0%; ±0.5% calib.
    5:1 to 30:1
    -180°C to 800°C
    Flanged, butt-weld
    Standard flow

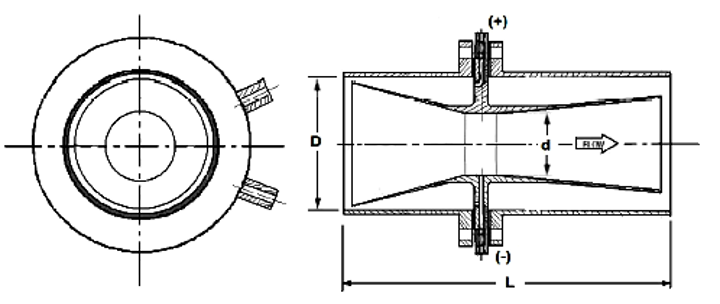

    SFC-FV-FI
    Insert-type for retrofitting
    3" to 144"
    150# to 4500#
    ±0.5%; ±0.25% calib.
    5:1 to 30:1
    -180°C to 800°C
    Flanged, butt-weld
    Retrofitting


    SFC-FV
    High Performance Venturi
    1" to 144"
    150# to 2500#
    ±0.5%; ±0.25% calib.
    5:1 to 30:1
    -180°C to 800°C
    Flanged, butt-weld
    Reversible flow
